UNIBLOXS is a low cost modular framework system for vehicles from 0,5 to 4,5 tonnes gross weight.
Simple production concept.
The UNIBLOXS framework system is optimized on simple manufacturing processes that are available around the globe. Instead of expensive high-tech materials the UNIBLOXS System uses standardized steel and sheet metal blanks. New joining techniques and an intelligent arrangement save up to 50% of the weight of usual build structures.
Low tec and scalable.
The entire frameworks is customizable to any weight and load requirements without changes in construction. This just saves time in the development of vehicle families or vehicle series in different market segments (M1, N1). Various coating and surface treatments can be optional applied on the UNIBLOXS framework.
Modular and versatile.
The division of frame segments in individual modules requires a special joining which is available in the UNIBLOXS system. All joining techniques are possible without large mechanization or equipment. A pre-assembly of frame segments can even be done without further tools. The patented UNIBLOXS System uses self-developed centering bushings for the assembly of the modules.

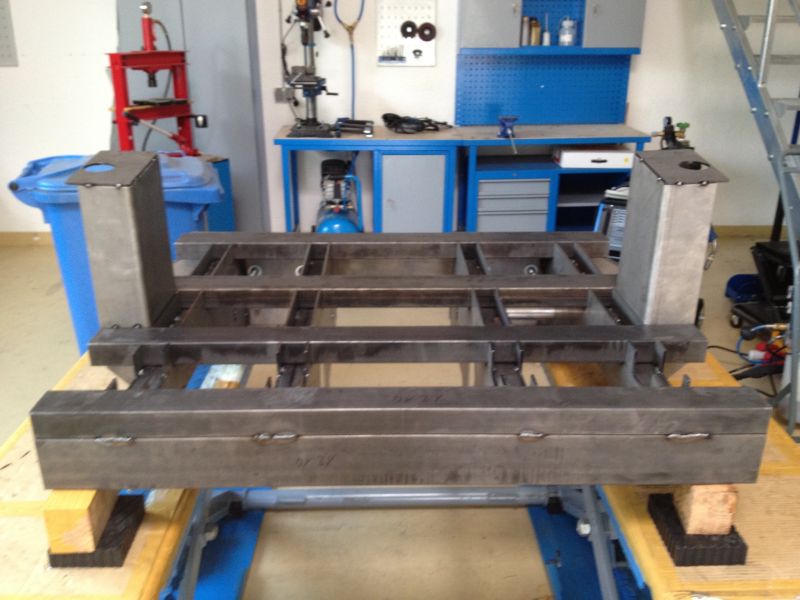

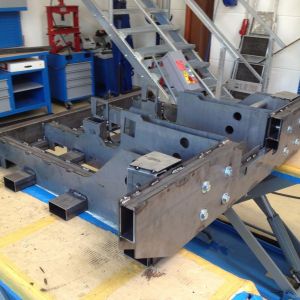

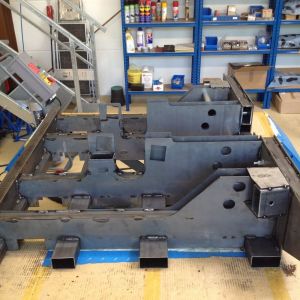

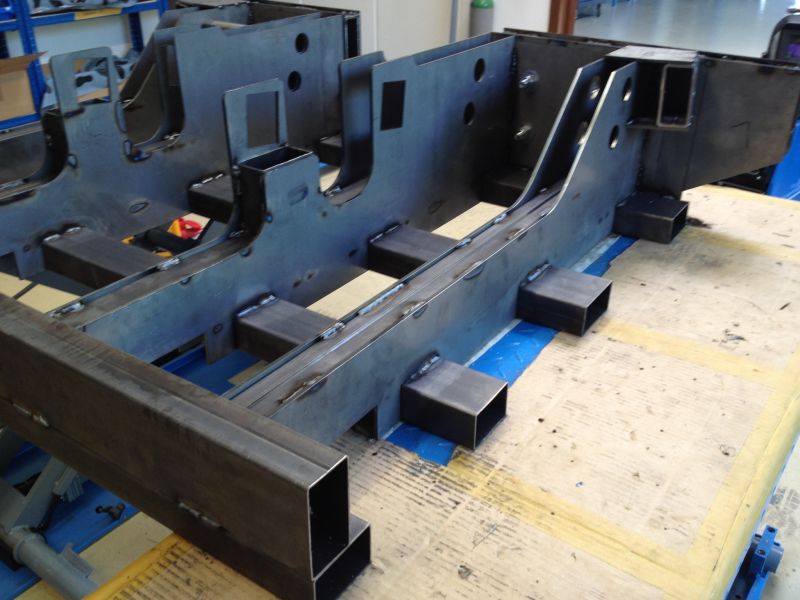

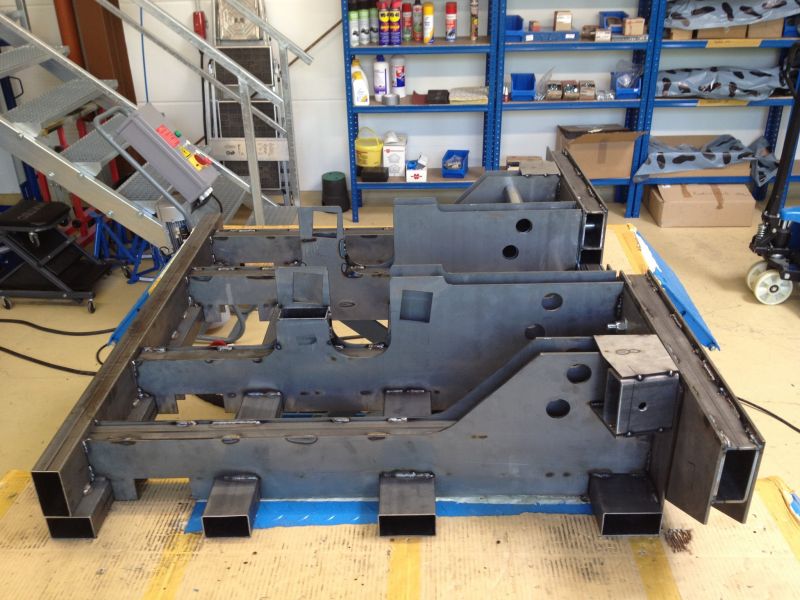

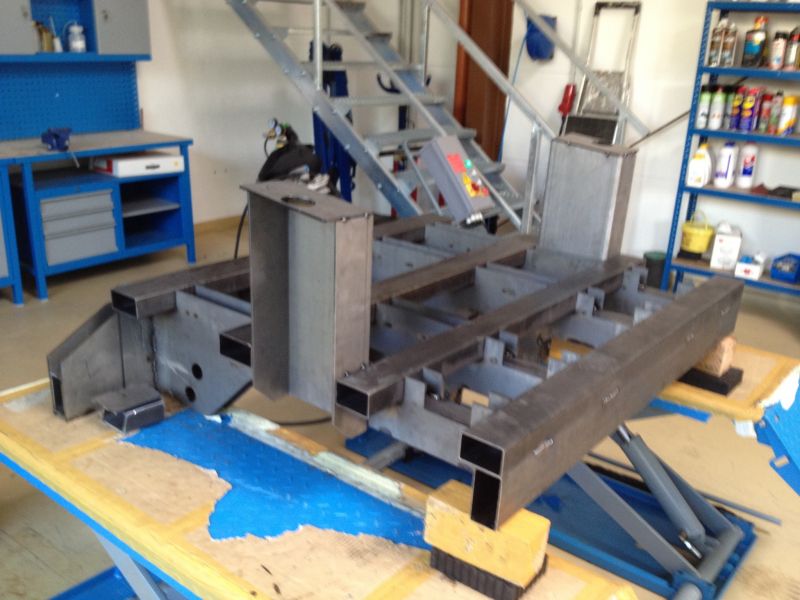

The provided examples demonstrate the versatility of the frame system. In recent projects, we have successfully utilized the system for various applications, including small vehicles (L7e) and armored vehicles with a gross weight of up to 7.5 tonnes. The system’s weight capabilities are solely determined by the thickness of the laser- or water jet-cut steel plates employed. For projects with weight restrictions, we have also designed an aluminum-only version of the system.

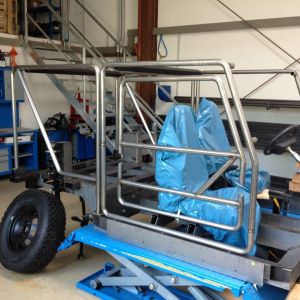

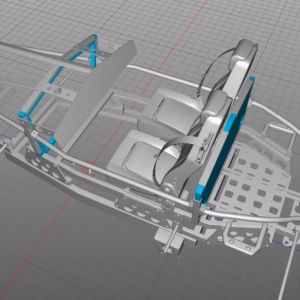

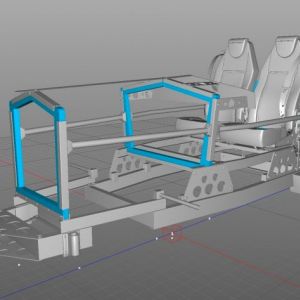

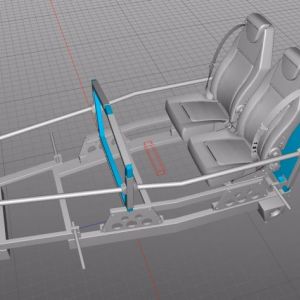

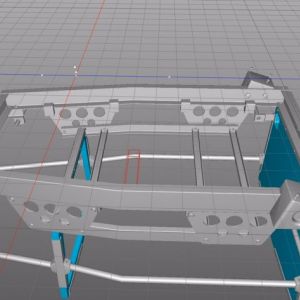

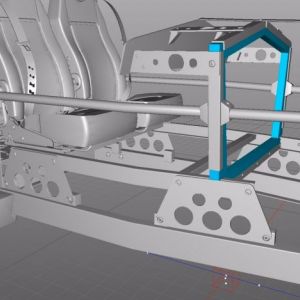

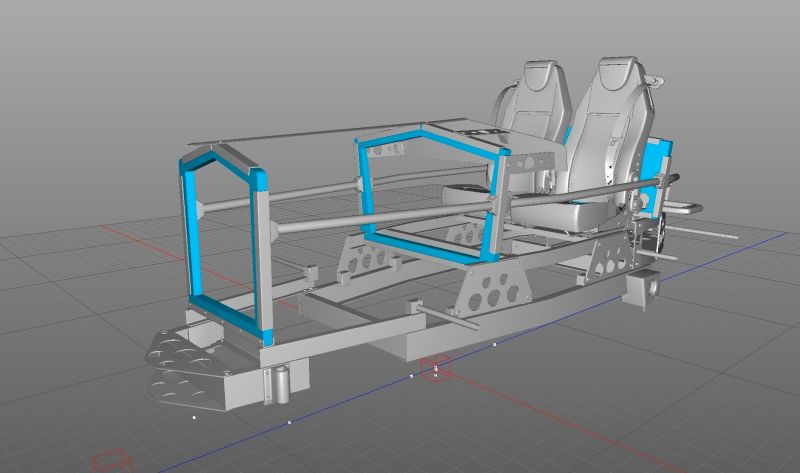

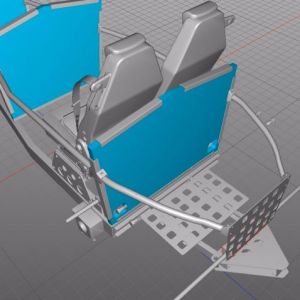

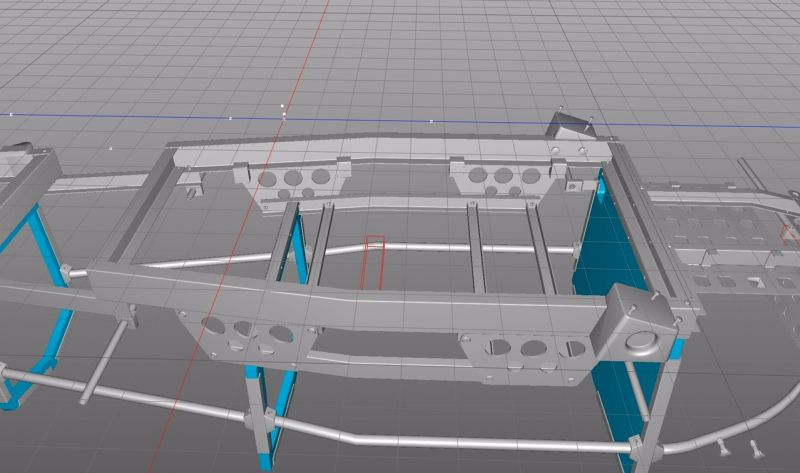

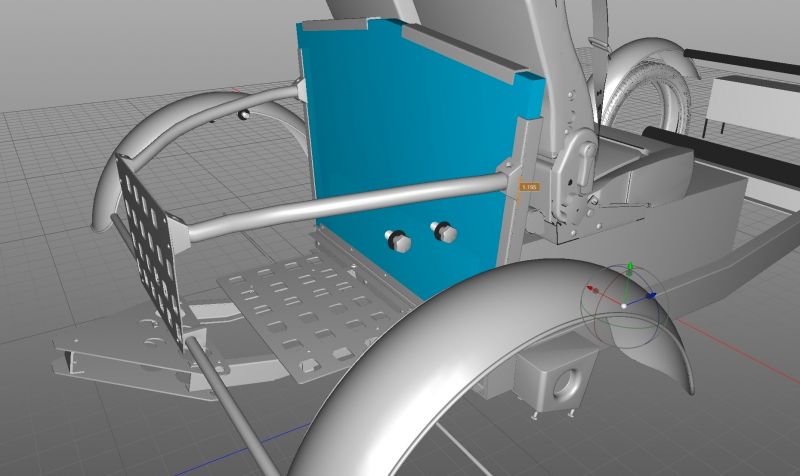

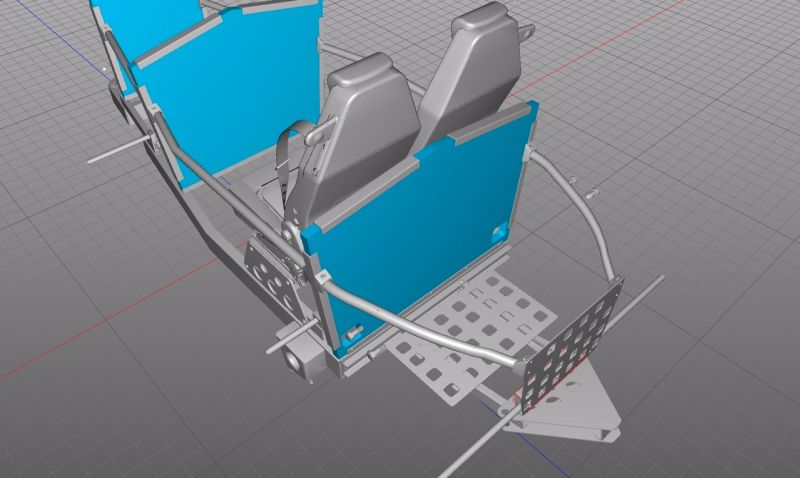

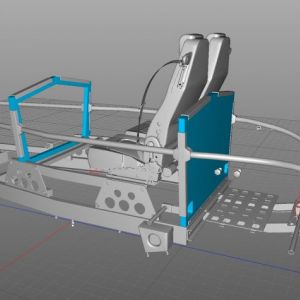

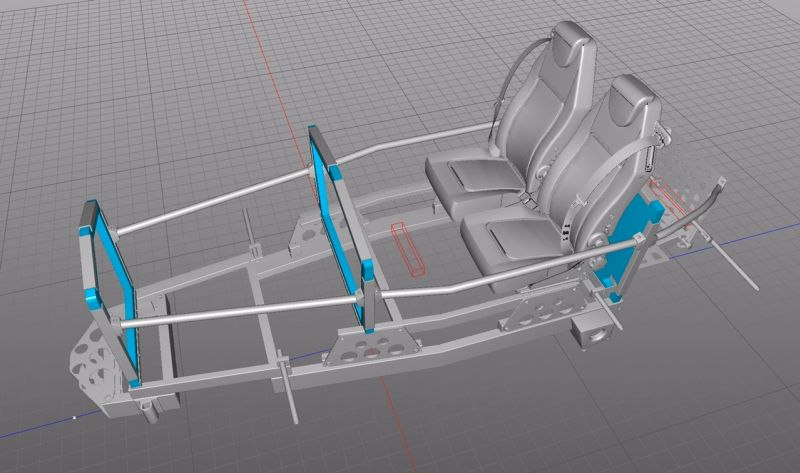

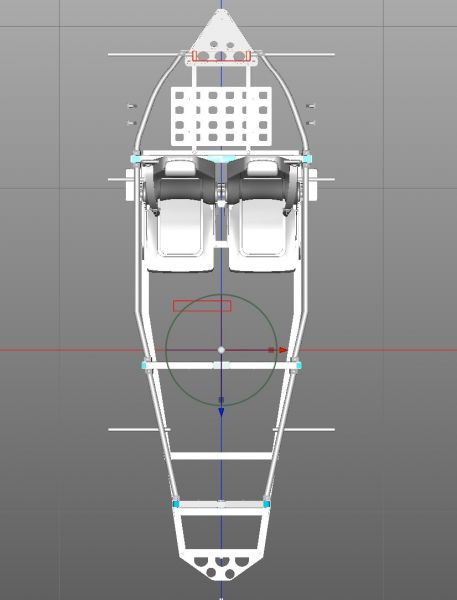

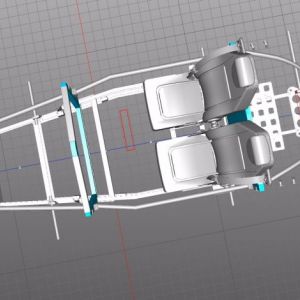

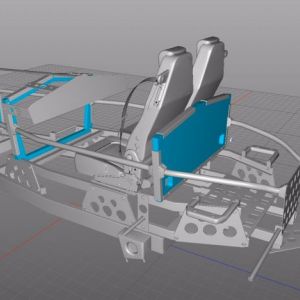

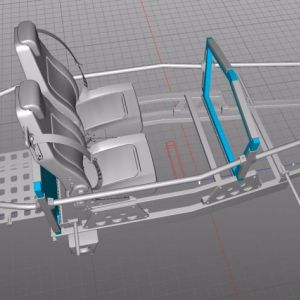

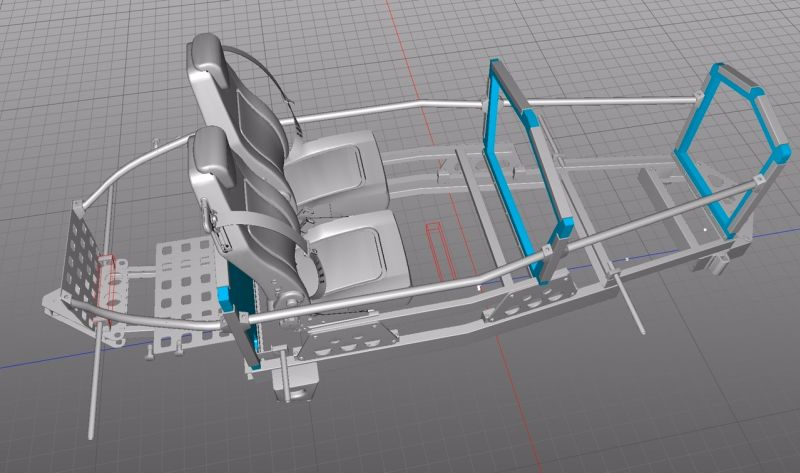

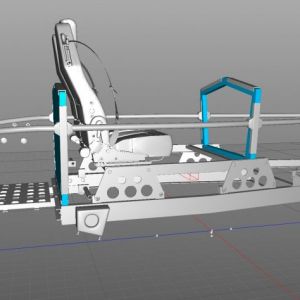

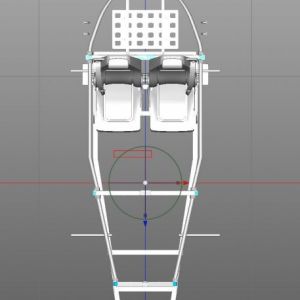

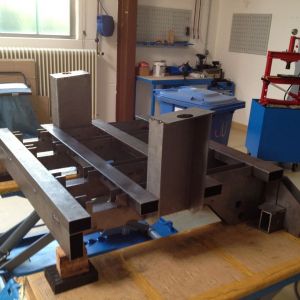

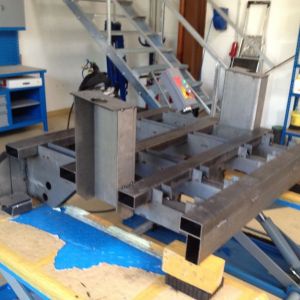

Frame for small L7e electric vehicle

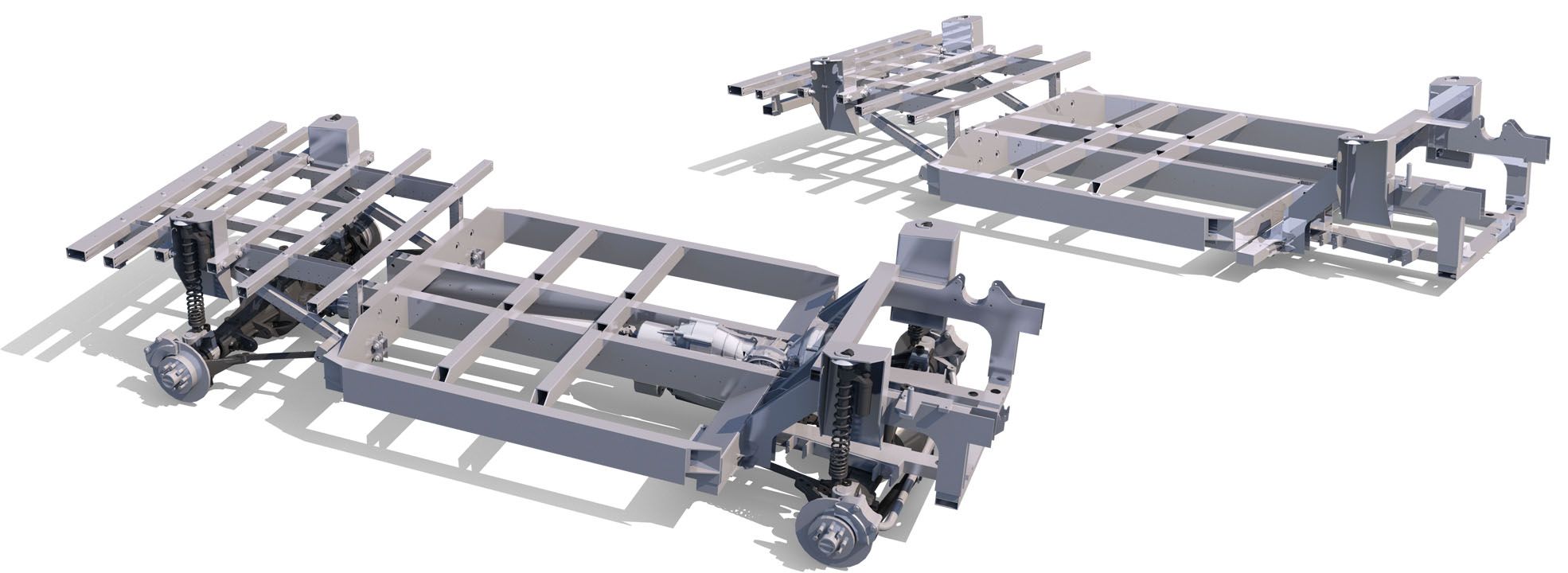

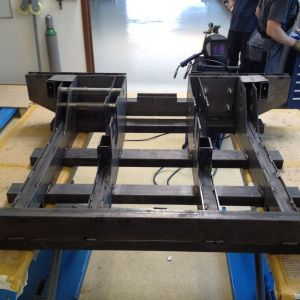

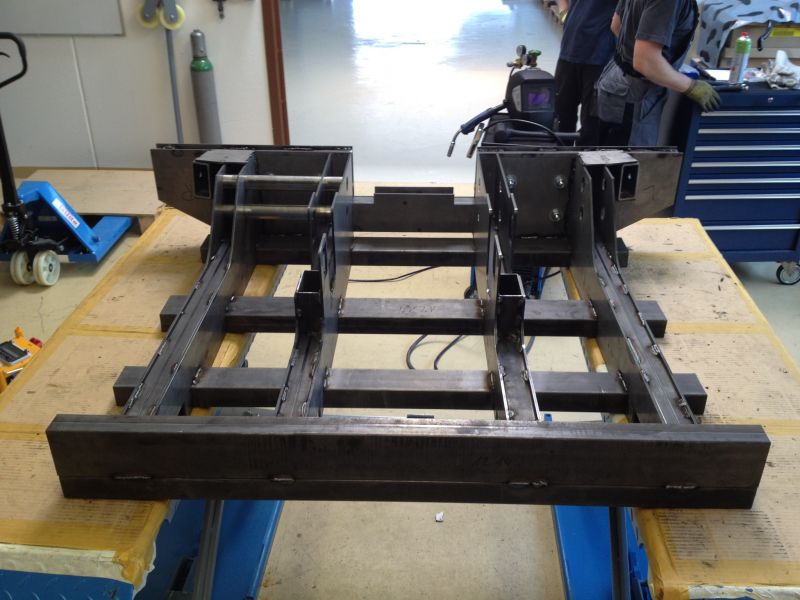

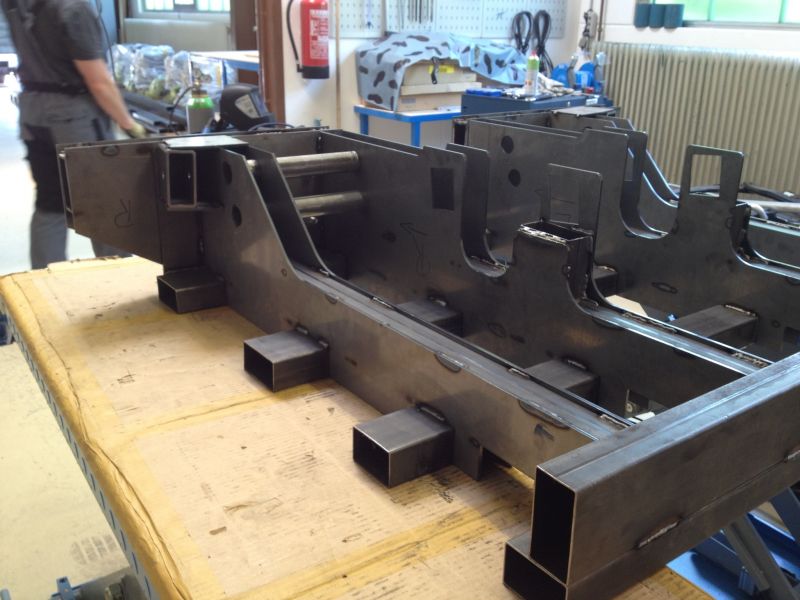

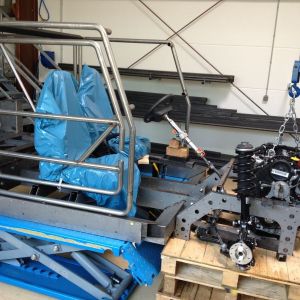

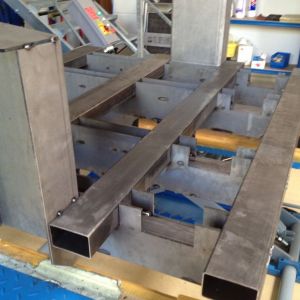

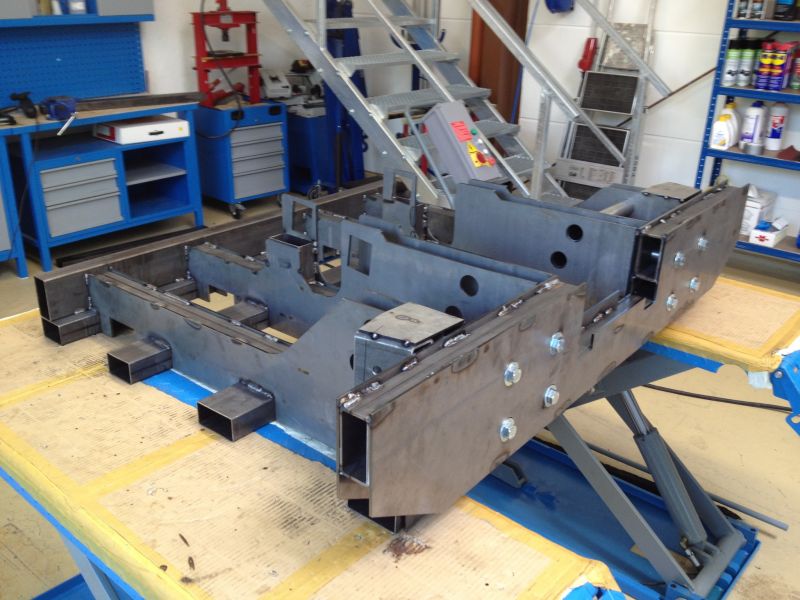

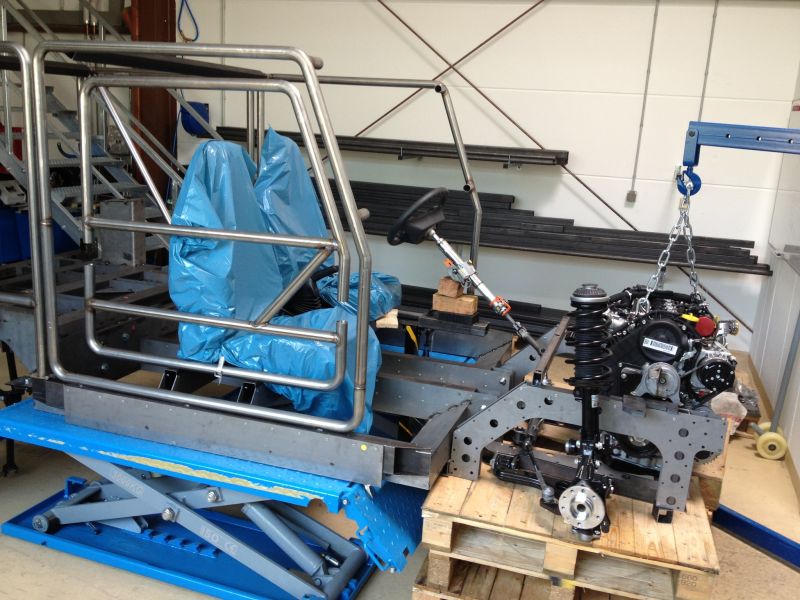

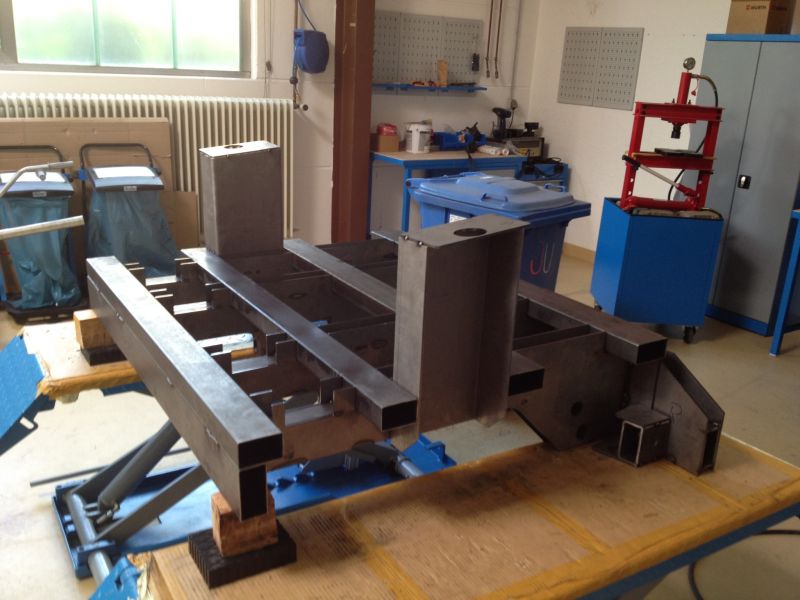

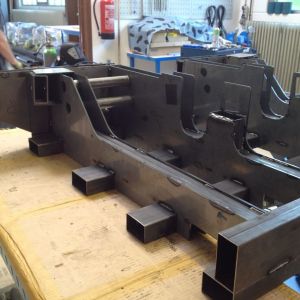

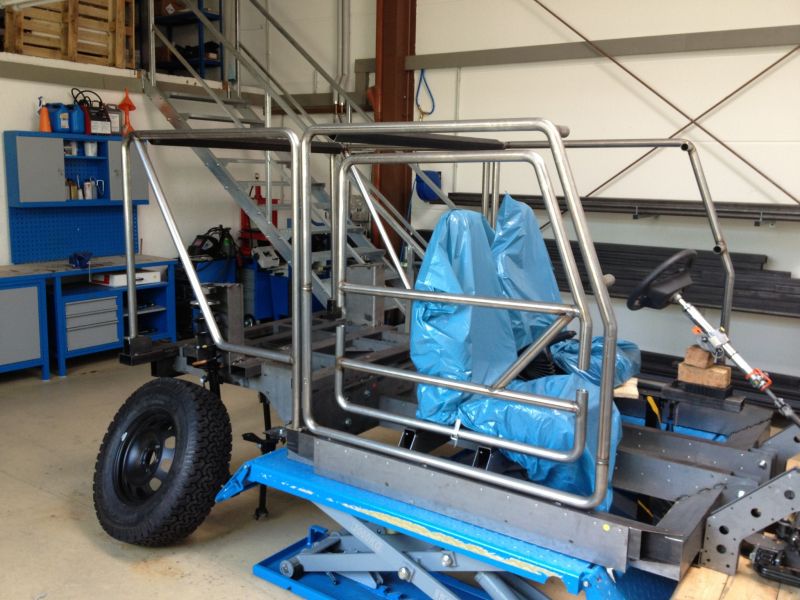

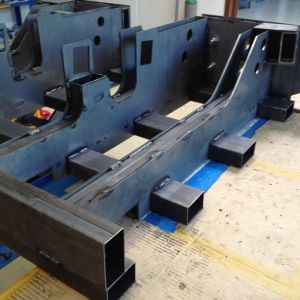

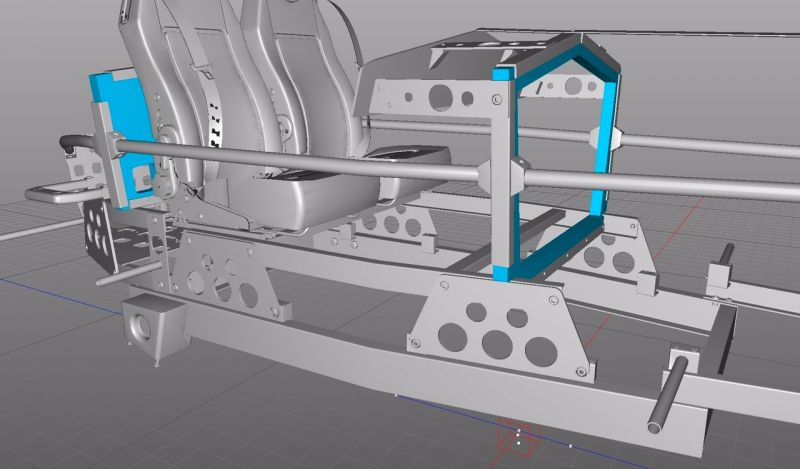

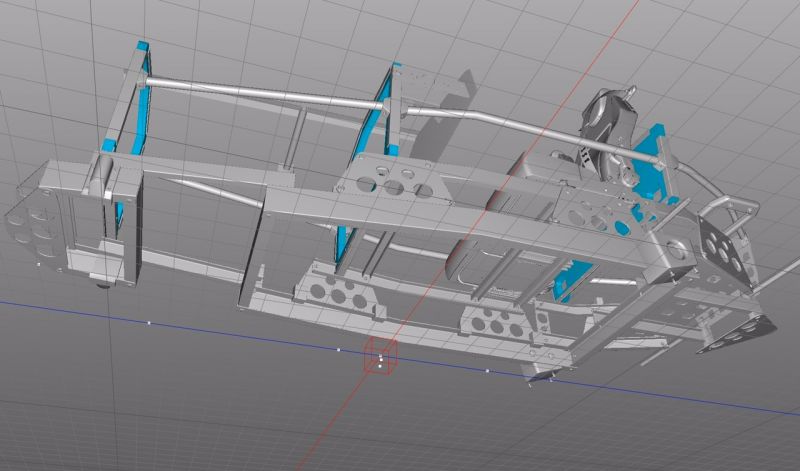

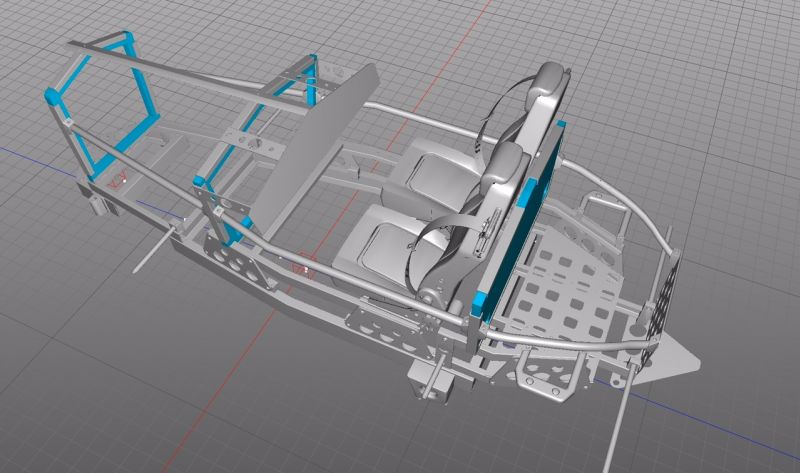

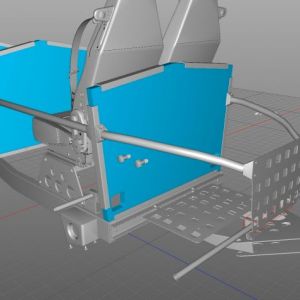

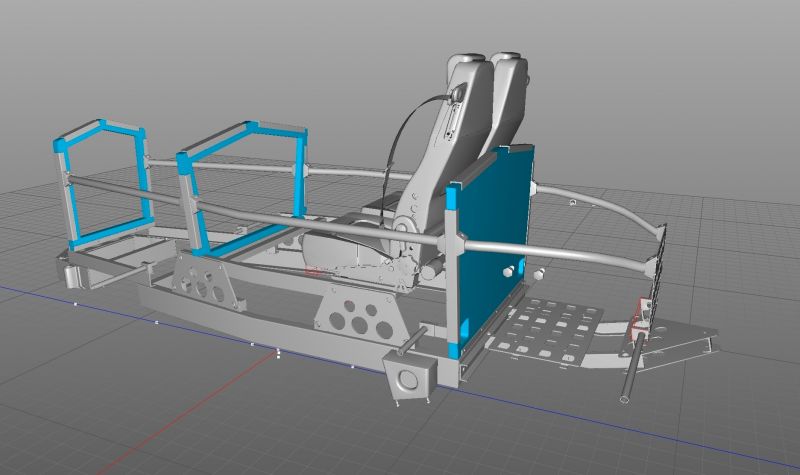

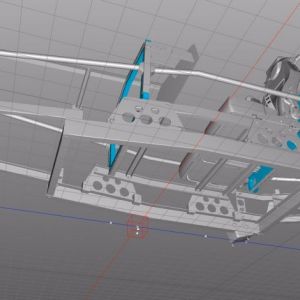

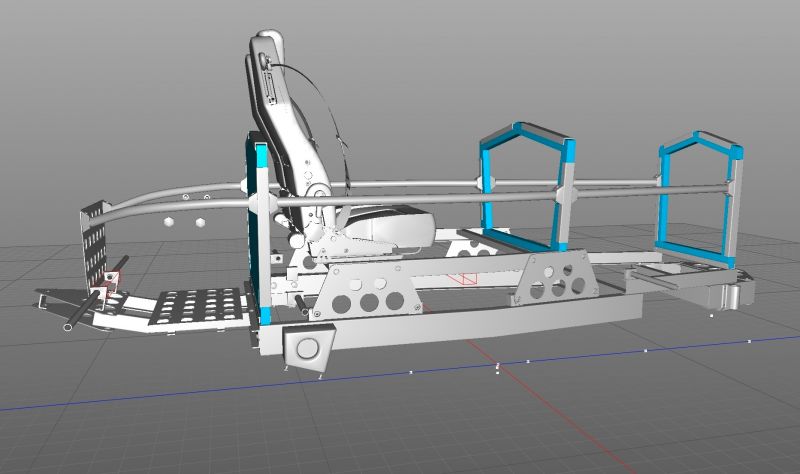

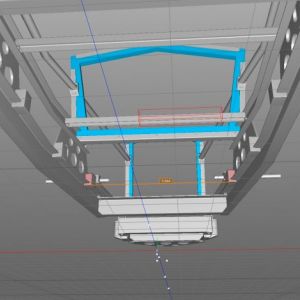

M1 frame for a 4x4 UTV
